🔧 How to Set Up and Configure the ShineWilan-X2 Datalogger 🔧

The ShineWilan-X2 is a powerful tool designed to enhance communication between your inverter and monitoring systems. Setting it up correctly is essential for ensuring that all data is accurately captured and reported. Follow this detailed step-by-step guide to configure the ShineWilan-X2 and get your monitoring system online.



Step 1: 📦 Verify the Datalogger

Upon opening the box, locate the serial number and check code on the ShineWilan-X2 datalogger. Ensure these numbers match the ones displayed on the packaging. This initial verification step is crucial to prevent mismatched configurations and ensure a smooth setup process.

Step 2: 🔌 Connect the Datalogger to the Inverter

1. Insert the ShineWilan-X2 datalogger into the inverter’s USB port.

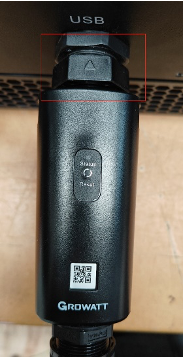

2. Make sure the triangular symbol 🔺 on the datalogger faces upward during insertion.
3. Rotate the circular connector clockwise 🔄 to secure it firmly in place.

If the connection is successful, the indicator light on the datalogger will start flashing 🔴 red. This indicates that the device is ready for the next steps.

Step 3: 🔵 Activate Bluetooth Mode

To enable Bluetooth mode:

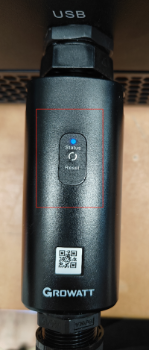

1. Press the small button 🔘 on the datalogger briefly.
2. The indicator light should change to a steady 🔵 blue, indicating that Bluetooth is active and ready for configuration.

Step 4: 📲 Open the ShinePhone App

1. Download and install the ShinePhone app on your mobile device 📱.
2. Launch the app and log in using your credentials.

Step 5: 🌿 Create a New Plant

1. Select the option to Create Plant in the app.

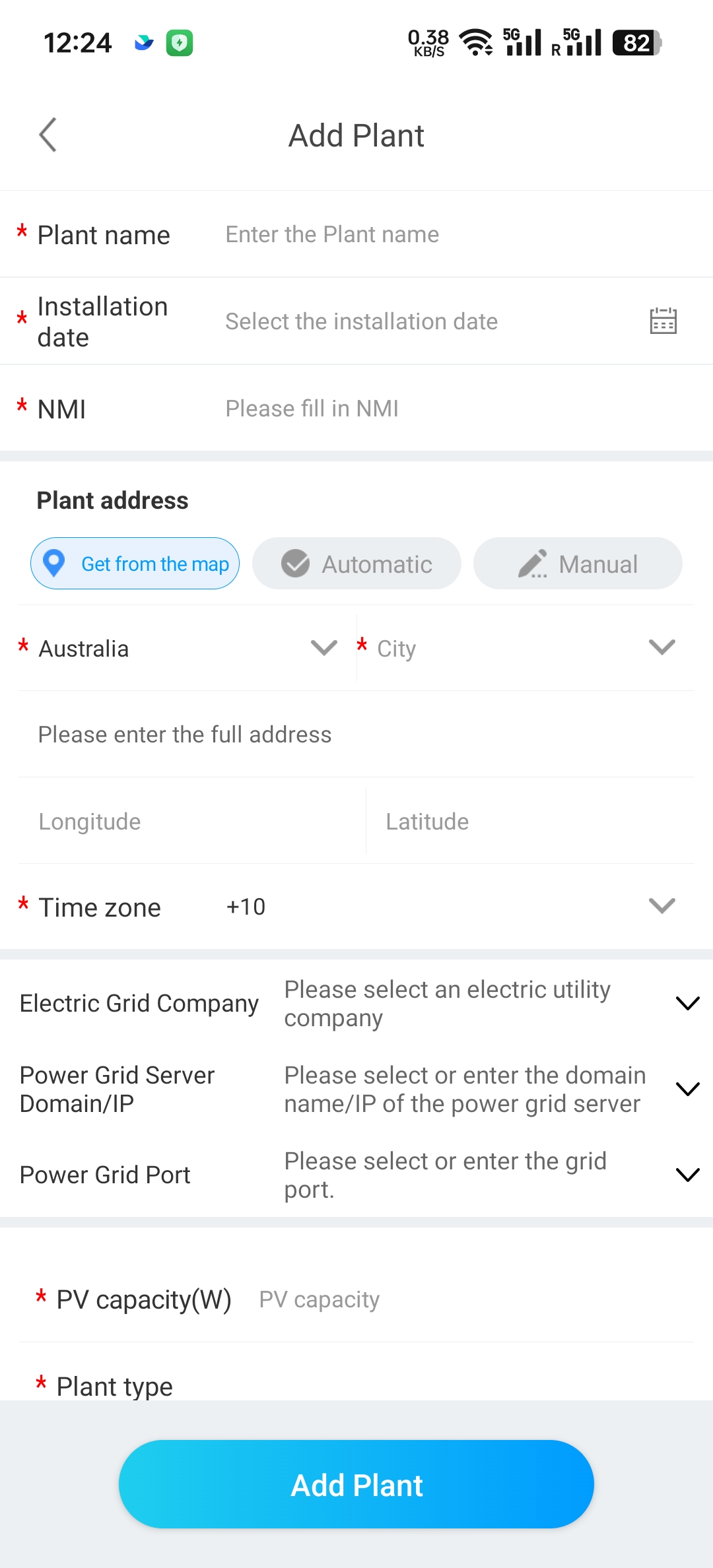

2. Enter the necessary details:
   • 📛 Plant Name: Choose a unique and descriptive name for the installation.
   • 📅 Installation Date: Input the date when the system was set up.
   • 🔢 NMI Number: You can enter this manually or use the app’s automatic detection function to pull the details.

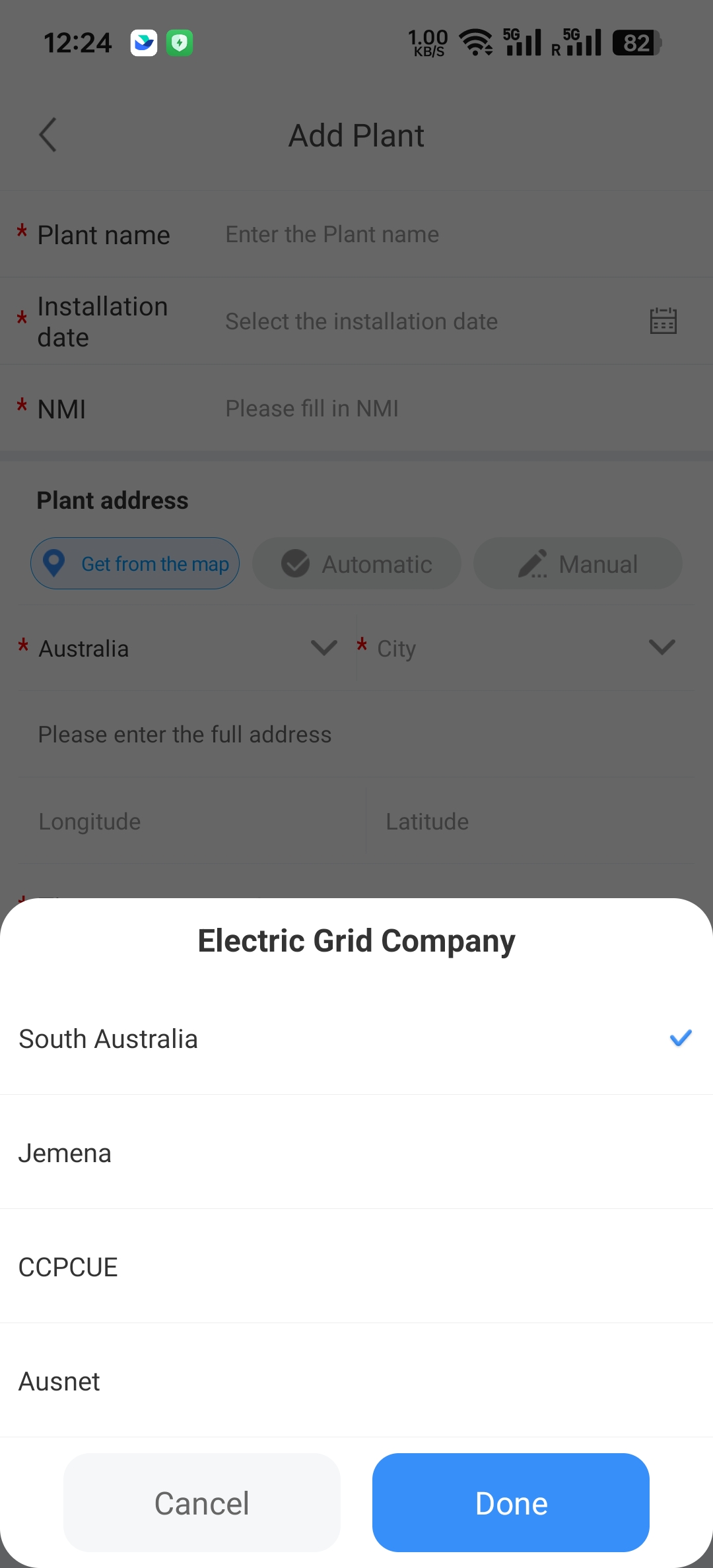

   • 🏢 Electric Grid Company: Select the appropriate grid provider from the list (e.g., Ausnet, Jemena, CCPCUE, or South Australia).

Step 6: 🖧 Configure the Power Grid Settings

For accurate communication, set up the following parameters based on your network configuration:

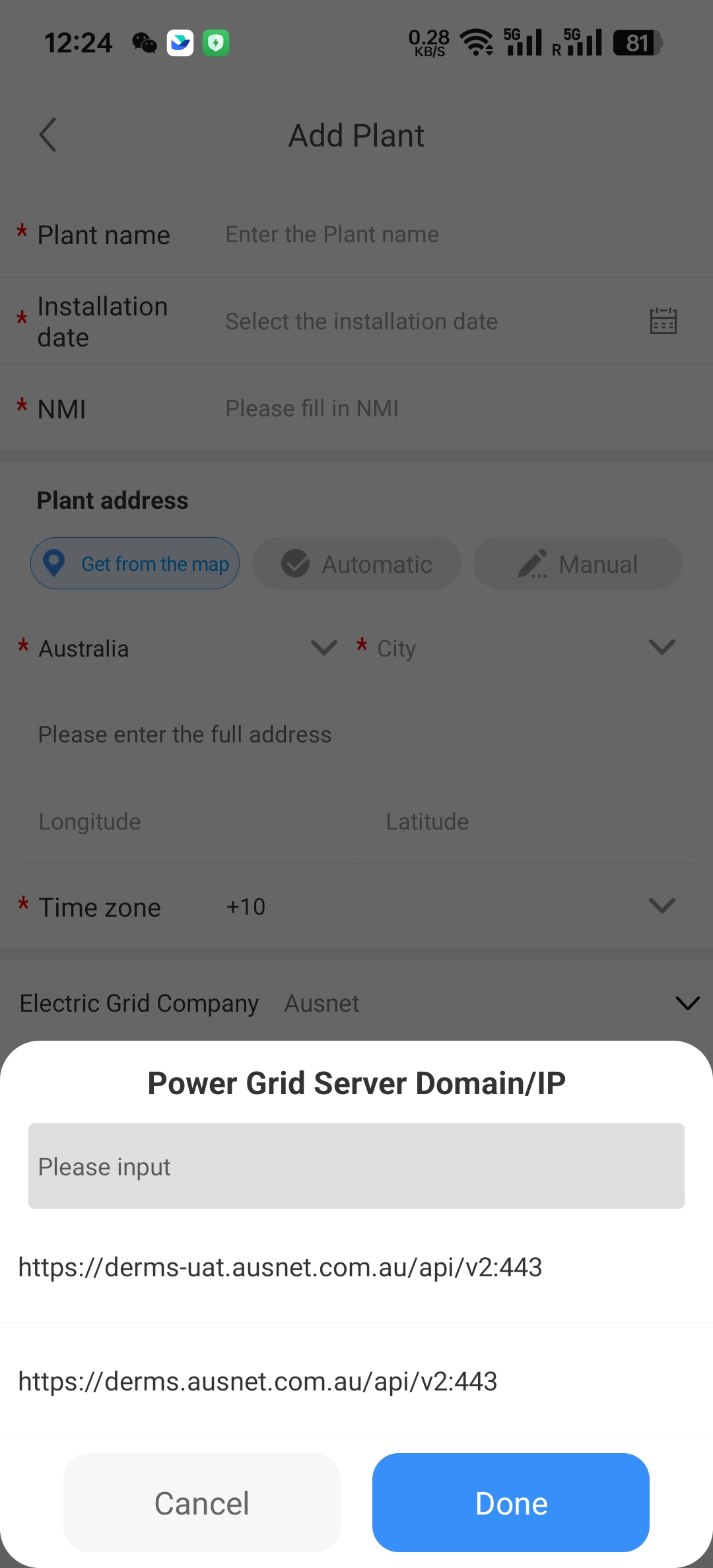

• 🌐 Power Grid Server Domain/IP: Choose the recommended Domain/IP from your setup instructions. If unsure, contact Growatt After-Sales at 📞 1800 476 928 for assistance.

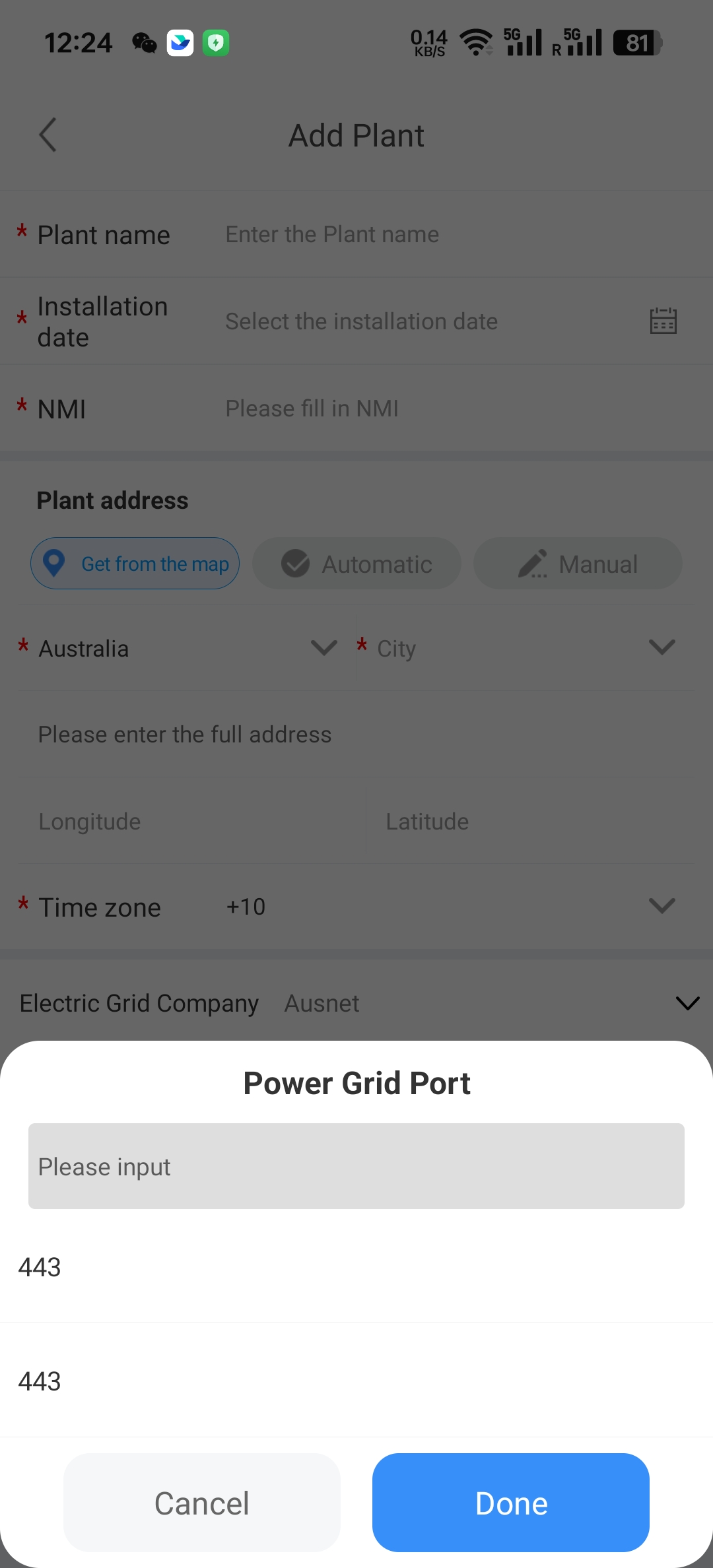

• 🔌 Power Grid Port: Enter the designated port number provided for your setup.

Step 7: ➕ Add the Datalogger to the Plant

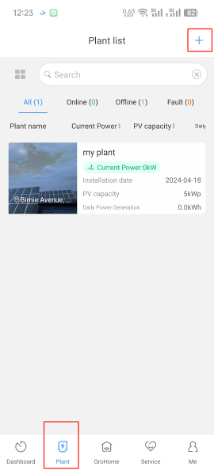

1. Navigate to the Plant section at the bottom of the app.

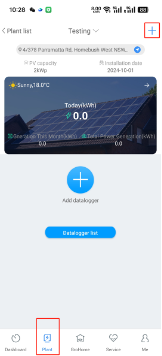

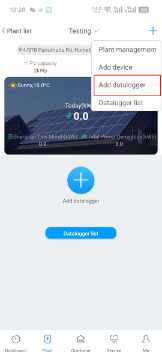

2. Tap the "+" symbol in the top right corner ➕ and select Add Datalogger.

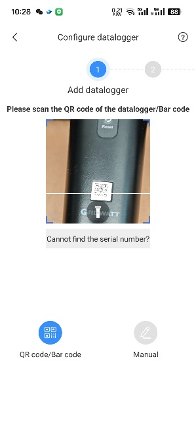

3. A scanning interface will appear 📷. Use it to scan the QR code located on the ShineWilan-X2 datalogger.

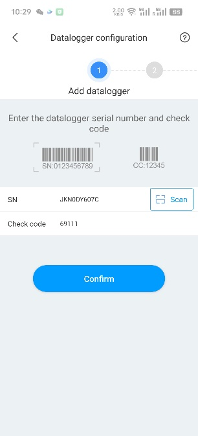

4. Confirm that the serial number and check code match those displayed in the app.

Step 8: 📶 Configure the Wi-Fi Connection

1. After verifying the datalogger details, you will be prompted to set up the Wi-Fi connection 📡.
2. Enter the Wi-Fi network’s SSID and password 🔐.
3. Tap "Configure Immediately" to initiate the connection.

This process may take a few minutes ⏳. Once the connection is successful, a confirmation message ✅ will appear, and the app will automatically redirect you back to the Plant interface.

Step 9: 📊 Verify the Connection Status

1. In the Plant interface, view the updated information for the connected inverter.
2. Tap the "+" symbol in the top right corner ➕ and select "Datalogger List" 📄.
3. Confirm that the ShineWilan-X2 is registered with the power station and its status shows as "Online" 🌐.

💡 Troubleshooting Tips

• If the indicator light remains flashing 🔴 red after several attempts, ensure that the USB port is securely connected and the datalogger is not damaged.
• For any issues with connectivity or if the app cannot locate the datalogger, consider contacting the Growatt After-Sales team for assistance 📞.

⚠️ Important Notes

• The installer must contact the Growatt After-Sales team to obtain the necessary LFDI (Local Field Device Identifier) for registration before October 10, 2024 📅.
• This datalogger can be used either with a Wi-Fi connection or with an Ethernet cable for a more stable and wired configuration 🔗.

With the ShineWilan-X2 set up, you can now monitor your system’s performance, track real-time data, and ensure that everything is running optimally. If you encounter any issues or have additional questions, don’t hesitate to reach out to the support team 📧.
