Introduction

The SDM630 MCT is a versatile and reliable three-phase smart meter designed for accurate energy monitoring and management in industrial, commercial, and residential settings. With its advanced features and precise measurements, it plays a crucial role in optimizing energy consumption, reducing costs, and ensuring efficient operation of electrical systems.

This article provides a detailed guide on the wiring process of the SDM630 MCT smart meter. Whether you are an experienced electrician or a DIY enthusiast, this comprehensive guide will assist you in correctly and safely installing the meter. For visual assistance, please refer to the attached document titled 'SDM630 MCT Wiring Diagram.pdf', which offers detailed schematics and diagrams to support the instructions provided herein.



Understanding the SDM630 MCT Smart Meter

Before diving into the wiring process, it's essential to understand the key features and components of the SDM630 MCT smart meter.



Key Features

  • Three-Phase Measurement: Accurately measures voltage, current, power, and energy consumption across all three phases.
  • Multi-Tariff Capability: Supports multiple tariff structures for flexible energy billing.
  • Communication Interfaces: Equipped with MODBUS RTU/ASCII protocols for seamless integration with energy management systems.
  • LCD Display: Provides clear and real-time display of all electrical parameters.
  • Compact Design: Easy to install in various electrical panels and enclosures.



Components Overview

  • Voltage Inputs (V1, V2, V3, VN): Terminals for connecting phase and neutral voltage lines.
  • Current Inputs (I1+, I1-, I2+, I2-, I3+, I3-): Terminals for connecting current transformers (CTs) for each phase.
  • Communication Ports: Interfaces for data transmission and integration with other systems.
  • Power Supply Terminals: Inputs for supplying necessary operational power to the meter.
  • Sealable Cover: Protects terminals and prevents unauthorized access or tampering.

Understanding these components will aid in executing a correct and efficient wiring process.



Safety Precautions

Working with electrical systems poses inherent risks. Adhering to safety protocols is paramount to prevent accidents, injuries, and equipment damage.

  1. Power Isolation: Always ensure that the power supply is completely turned off before beginning any wiring work.
  2. Use Appropriate Protective Gear: Wear insulated gloves, safety goggles, and appropriate footwear to protect against electrical shocks and other hazards.
  3. Verify Voltage Levels: Use a multimeter to confirm that no voltage is present in the system before starting work.
  4. Follow Regulations: Comply with local electrical codes and standards throughout the installation process.
  5. Double-Check Connections: Verify all connections before re-energizing the system to prevent short circuits or incorrect readings.
  6. Professional Assistance: If unsure about any step, consult with or hire a qualified electrician.



Tools and Materials Needed

Before starting the installation, gather the following tools and materials:

  • SDM630 MCT Smart Meter
  • Current Transformers (CTs) suitable for your system's current ratings
  • Insulated Screwdrivers
  • Wire Strippers and Cutters
  • Appropriate Electrical Wires (as per the required gauge and insulation)
  • Multimeter
  • Protective Gear (insulated gloves, safety goggles)
  • Mounting Hardware (screws, DIN rail if applicable)
  • Labels or Markers for identifying wires and terminals



Step-by-Step Wiring Instructions

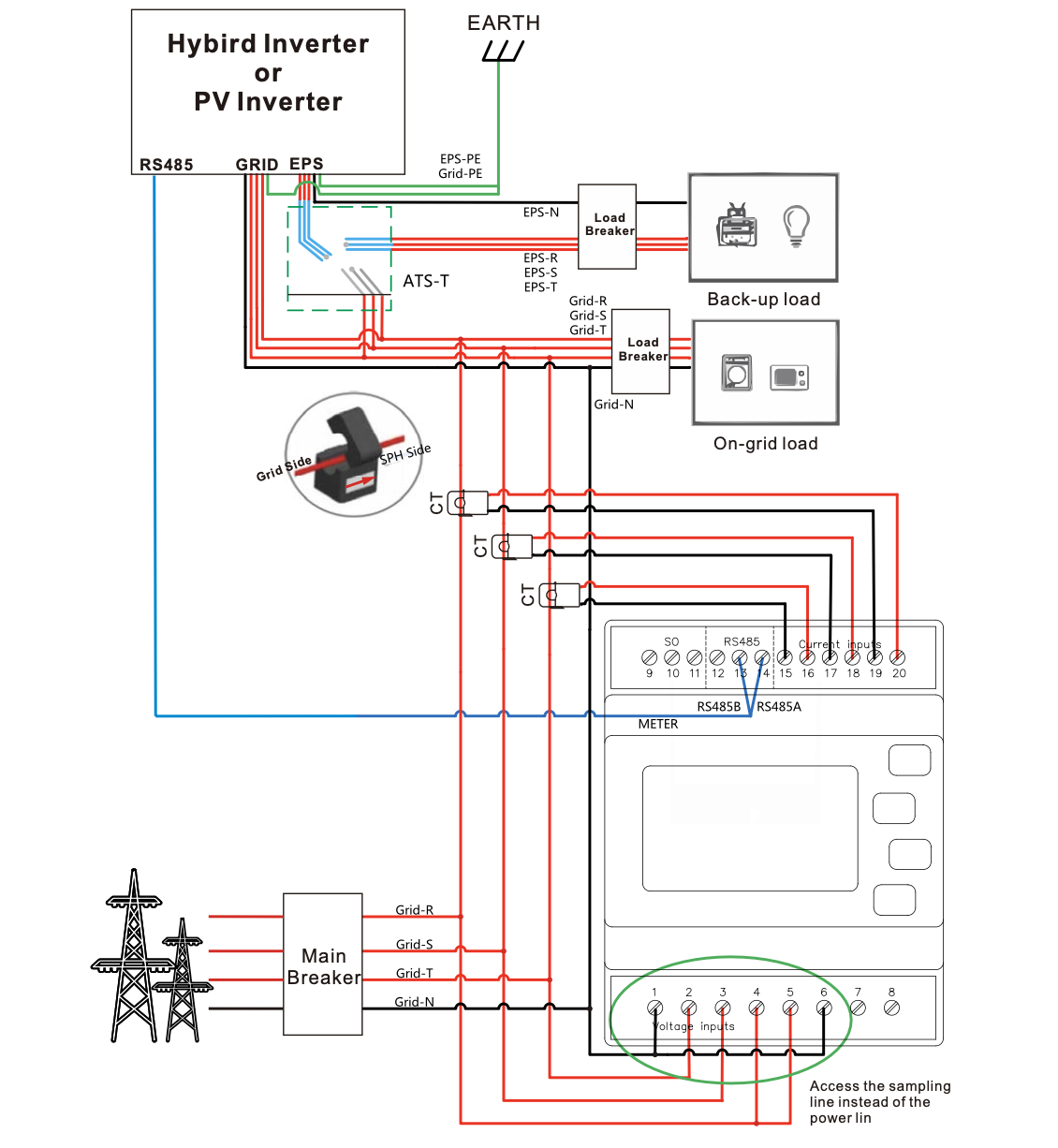

Screenshot 2024-08-28 at 3.56.39 PM.png



Follow these steps meticulously to ensure a successful and safe installation of the SDM630 MCT smart meter.



Video Guide



Step 1: Prepare the Installation Site

  • Turn Off Power: Ensure that the main power supply to the installation site is completely turned off and locked out.
  • Mount the Meter: Securely mount the SDM630 MCT meter onto a DIN rail or appropriate mounting surface within the electrical panel.
  • Inspect Components: Check all components, including CTs and wires, for any signs of damage or defects.

Step 2: Connect Voltage Inputs

Purpose: To supply the meter with the voltage inputs from each phase and neutral for accurate measurement.

Procedure:

  1. Identify Voltage Lines:

    • L1 (Phase 1)
    • L2 (Phase 2)
    • L3 (Phase 3)
    • N (Neutral)

  2. Prepare Wires:

    • Strip the insulation from the ends of the wires appropriately.
    • Ensure that the wire ends are clean and free from fraying.

  3. Connect Wires to Terminals:

    • Connect L1 to the V1 terminal.
    • Connect L2 to the V2 terminal.
    • Connect L3 to the V3 terminal.
    • Connect Neutral (N) to the VN terminal.

  4. Secure Connections:

    • Tighten all terminal screws firmly to ensure secure and reliable connections.
    • Avoid over-tightening to prevent damage to the terminals.

  5. Verify Connections:

    • Double-check all connections against the wiring diagram to ensure correctness.

Step 3: Install Current Transformers (CTs)

Purpose: To measure the current flowing through each phase accurately.

Procedure:

  1. Select Appropriate CTs:

    • Choose CTs that match the current rating of your system.
    • Ensure CTs are compatible with the SDM630 MCT meter specifications.

  2. Position CTs:

    • Place each CT around the corresponding phase conductor:
      • CT1 around L1
      • CT2 around L2
      • CT3 around L3

  3. Observe Polarity:

    • Ensure correct orientation of CTs by following the polarity markings (P1/K and P2/L).
    • P1/K should face towards the power source, and P2/L towards the load.

  4. Connect CT Secondary Wires to Meter:

    • For CT1:
      • Connect S1 to I1+ terminal.
      • Connect S2 to I1- terminal.
    • For CT2:
      • Connect S1 to I2+ terminal.
      • Connect S2 to I2- terminal.
    • For CT3:
      • Connect S1 to I3+ terminal.
      • Connect S2 to I3- terminal.

  5. Secure and Insulate Connections:

    • Ensure all connections are tight and properly insulated.
    • Use cable ties or clamps to secure CT wires neatly within the panel.

  6. Verify Installation:

    • Cross-check all connections and orientations with the wiring diagram.

Step 4: Connect Power Supply

Purpose: To provide operational power to the meter.

Procedure:

  1. Identify Power Supply Requirements:

    • Refer to the meter's specifications for appropriate voltage and frequency requirements.

  2. Connect Supply Wires:

    • Connect the live wire to the designated power input terminal.
    • Connect the neutral wire to the corresponding neutral terminal.

  3. Ensure Proper Grounding:

    • Connect the grounding wire to the appropriate earth terminal to ensure safety and reduce electrical noise.

  4. Secure Connections:

    • Tighten all terminals and ensure wires are properly insulated.

Step 5: Configure Communication Interfaces (If Applicable)

Purpose: To enable data transmission between the meter and external systems for monitoring and management.

Procedure:

  1. Identify Communication Protocol:

    • Determine whether you will use MODBUS RTU, MODBUS ASCII, or other supported protocols.

  2. Connect Communication Cables:

    • Connect the A(+), B(-), and GND terminals to the corresponding ports on your data acquisition or monitoring system.

  3. Configure Settings:

    • Use the meter's interface to set appropriate communication parameters such as baud rate, parity, and device ID.

  4. Test Communication:

    • Verify that data is being correctly transmitted and received between the meter and external systems.

Step 6: Final Checks and Power-On

Purpose: To ensure all connections are correct and the system is ready for operation.

Procedure:

  1. Conduct Visual Inspection:

    • Review all connections for correctness, tightness, and proper insulation.
    • Ensure there are no exposed wires or loose components.

  2. Verify Against Wiring Diagram:

    • Cross-reference all connections with the 'SDM630 MCT Wiring Diagram.pdf' to confirm accuracy.

  3. Restore Power:

    • Re-energize the main power supply carefully.

  4. Monitor Meter Start-Up:

    • Observe the meter's display to ensure it powers up correctly and displays expected parameters.

  5. Test Measurements:

    • Use known loads to verify that the meter is accurately measuring voltage, current, and power.

  6. Check Communication Functionality:

    • Confirm that data is being accurately transmitted to connected monitoring systems.

  7. Secure Meter Cover:

    • Once all tests pass, secure the meter's terminal cover and apply seals if required to prevent tampering.

Conclusion

Proper installation and wiring of the SDM630 MCT three-phase smart meter are essential for accurate energy monitoring and efficient electrical system management. By following this comprehensive guide and adhering to all safety precautions, you can ensure a successful and reliable setup.

Remember to consult the attached 'SDM630 MCT Wiring Diagram.pdf' for detailed visual guidance and refer to the manufacturer's documentation for any additional specifications or instructions. If you encounter any issues or uncertainties during the installation process, do not hesitate to seek assistance from qualified electrical professionals.



Disclaimer: This guide is intended for informational purposes only. Always follow local electrical codes and standards, and consult with professional electricians when performing electrical installations.



References:

  • SDM630 MCT User Manual
  • Local Electrical Codes and Regulations
  • Safety Standards for Electrical Installations
