Configuration Instructions for ShineWiFi-X / ShineWiFi-S

Updated



Pre-Configuration Checklist:

  1. Wi-Fi Compatibility:

    • Ensure the datalogger is connected to a 2.4 GHz Wi-Fi network only. It is not compatible with 5 GHz Wi-Fi or mixed 2.4 GHz/5 GHz networks. (Please contact your Internet Provider for getting a separated 2.4GHz Network, it is free of charge)
    • Example: If you have two Wi-Fi networks, "Optus" and "Optus_5G," connect the datalogger to "Optus."

  2. Wi-Fi Name and Password Requirements:

    • Only letters and numbers are recognized. Avoid spaces and special characters like hyphens and underscores.
    • Both the Wi-Fi name and password are case-sensitive and must not exceed 13 characters.

  3. Signal Strength:

    • Ensure a strong Wi-Fi signal near the inverter. Test the signal strength using your mobile device near the inverter.

Special Note for Telstra Users:

  • If using Telstra, ensure you have a 2.4 GHz network available. If not, refer to article Telstra Guest WI-FI Configuration for instructions on creating a 2.4 GHz network.

Guidance for All Users:

Screen Shot 2024-08-01 at 12.39.32 pm.png

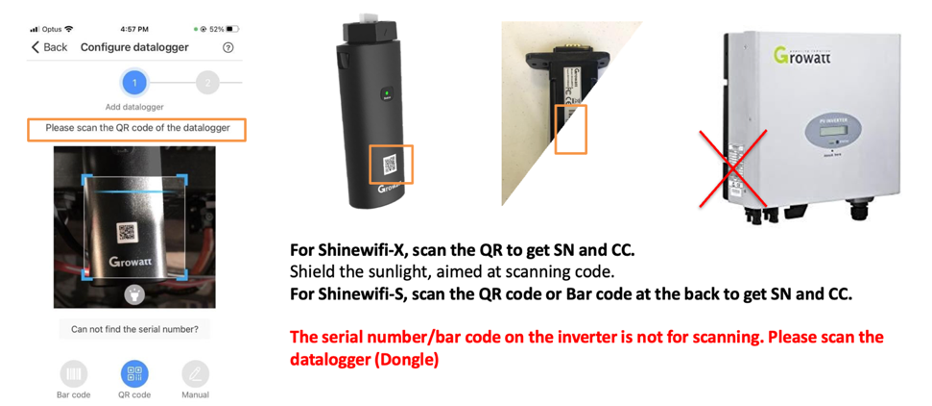

Find QR Code/Bar Code from Dongle

Step 1:





Step 2:







Configuration Methods:

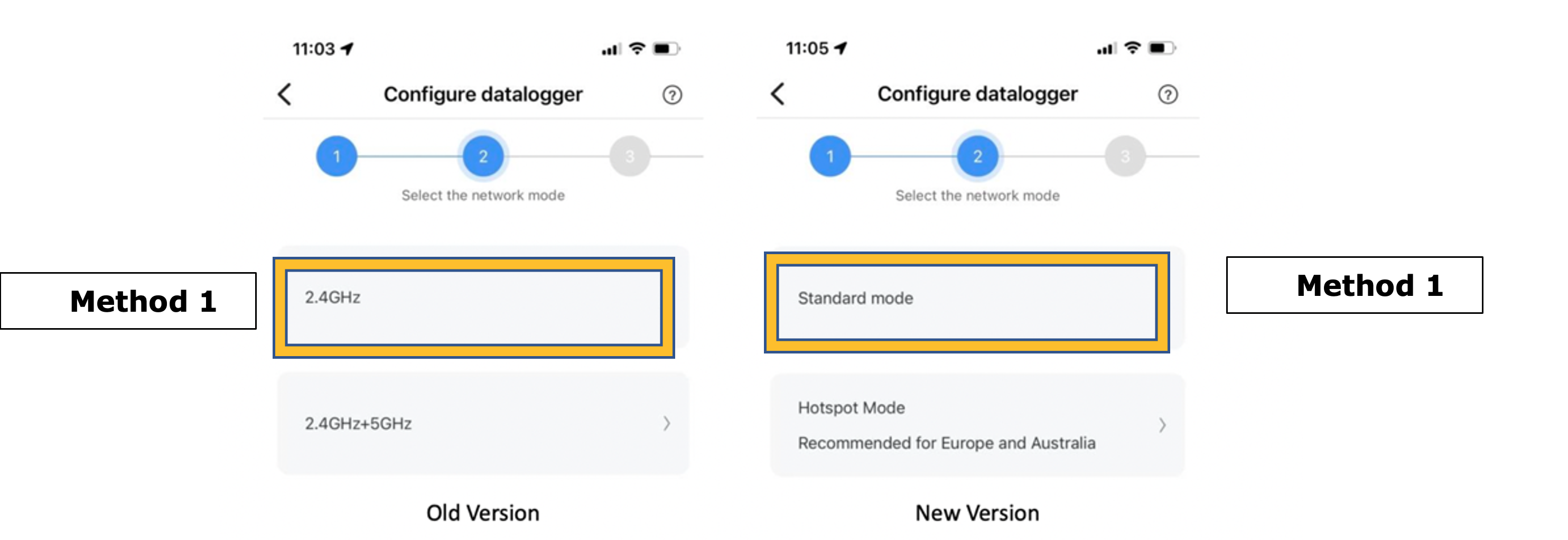

Method 1:

  • Prerequisite: Ensure the LED light on the dongle is flashing red.
  • Instructions:
    1. Connect your mobile device to the 2.4 GHz network at your location.
    2. Enter the Wi-Fi password.
    3. Press “Configure Immediately.”

Screen Shot 2024-08-01 at 12.20.18 pm.png

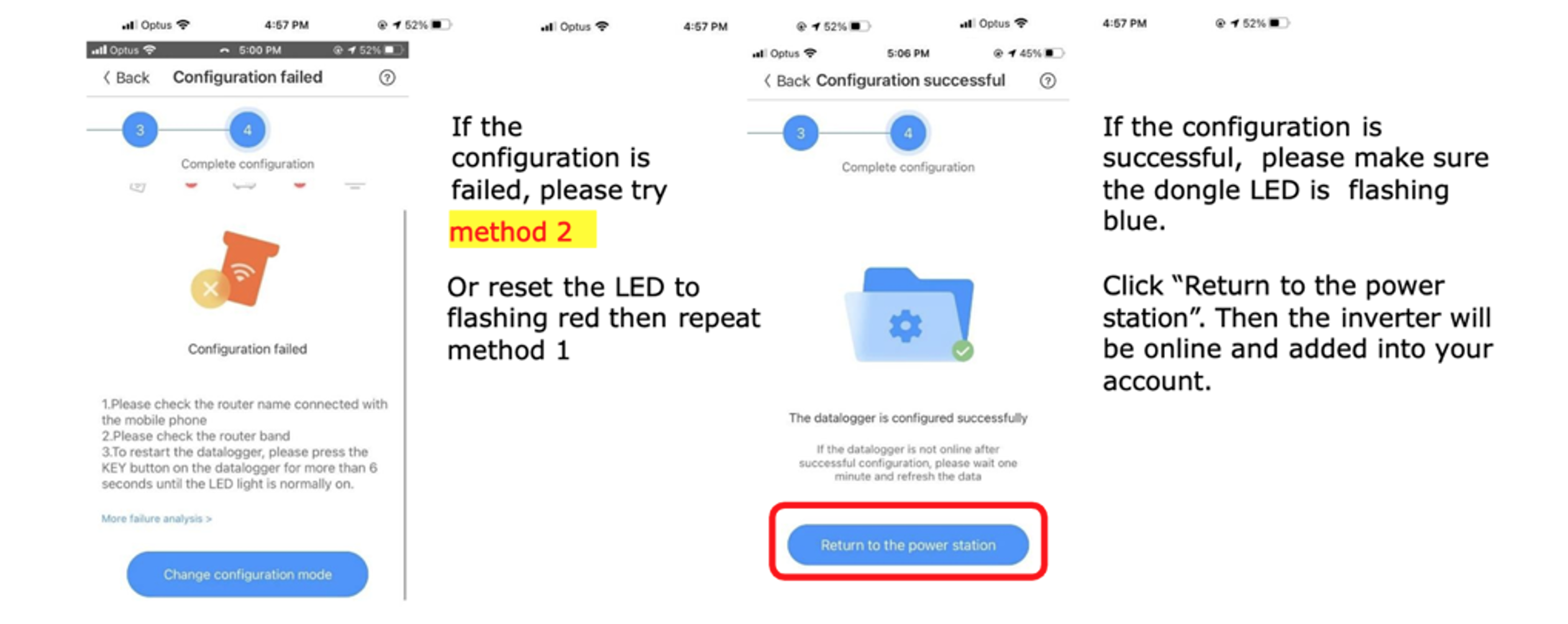

Screen Shot 2024-08-01 at 12.20.58 pm.png





Method 2:

For ShineWIFI-X (excluding Serial Number Starting from 5B/6B series) and ShineWIFI-S (all types)



Screen Shot 2024-08-01 at 12.22.34 pm.png

  • Prerequisite: Ensure the LED light on the dongle is solid blue.

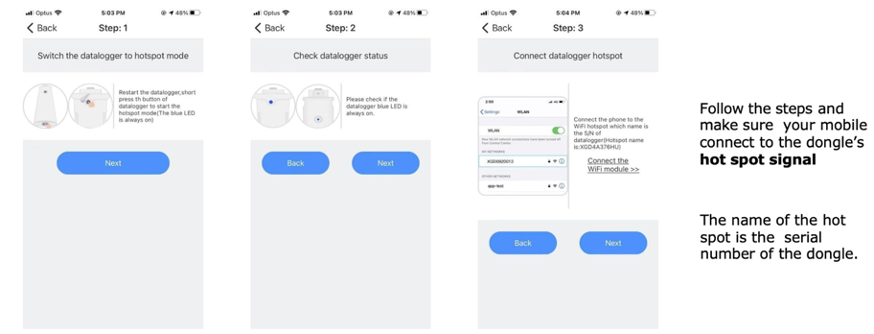

Method 2 - Type 1

  • Instructions:



  1. Connect your mobile device to the hotspot of the datalogger (network name is the dongle's serial number, e.g., XGD5BFS4PQ). Password: 12345678.
  2. Stay connected to this hotspot throughout the configuration process.
  3. Enter the customer's home Wi-Fi name and password.

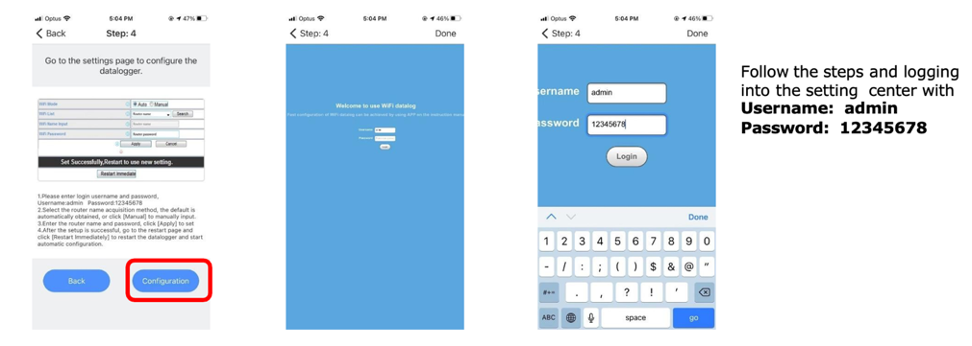

You will need to do some settings here.



After ‘Restart Immediately’, the dongle will restart itself.

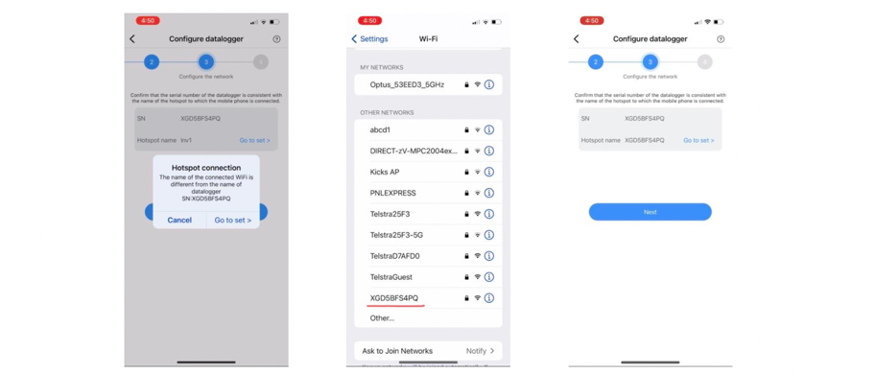

Method 2 - Type 2 For ShineWIFI-X (SN starts from 5B /6B series)

  • Instructions:

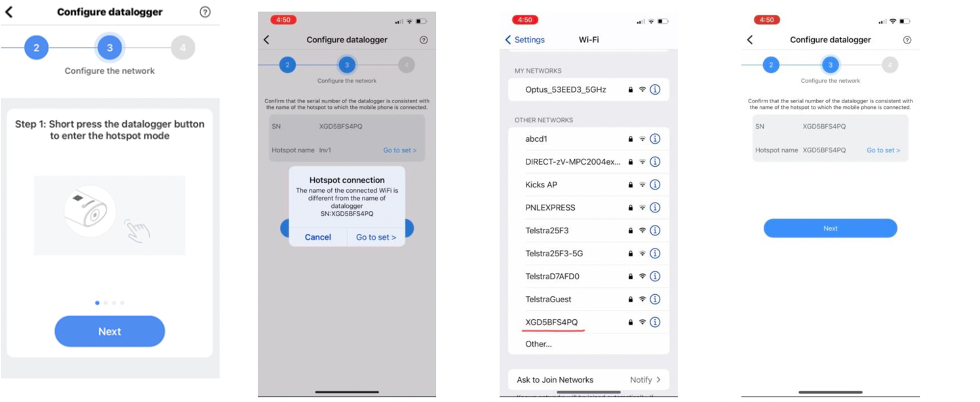

On Shinephone app, after you have selected method 2 – Hotspot Mode, you will reach the page ‘Step 3-Configure the hotspot mode’.





Please connect your phone's Wi-Fi to the hotspot of the datalogger. The network name will be the serial number of the dongle. For example:

  • Network Name: XGD5BFS4PQ
  • Password: 12345678

Ensure your phone remains connected to this hotspot throughout the entire configuration process.

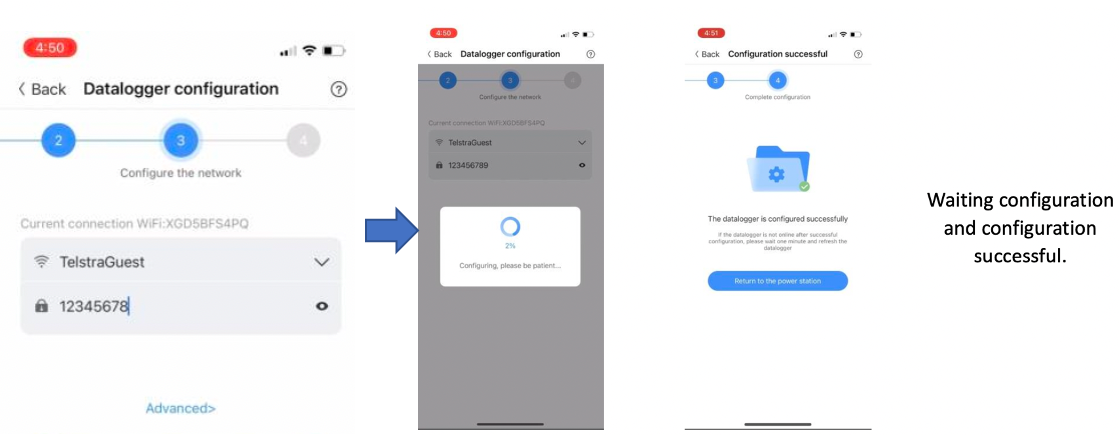

Next, enter the name and password of the customer's home Wi-Fi network.





Method 3 - For ShineWIFI-S and ShineWIFI-X (excluding 5B/6B series)

Instructions:

    1. Short press the reset button on the dongle. The indicator should show solid blue.
    2. Connect your mobile device to the dongle's hotspot (Wi-Fi name: XGD... or JPC...). Password: 12345678.
    3. Open a web browser on your mobile device and enter the IP address: 192.168.10.100.
    4. Log in with the username: admin and password: 12345678.

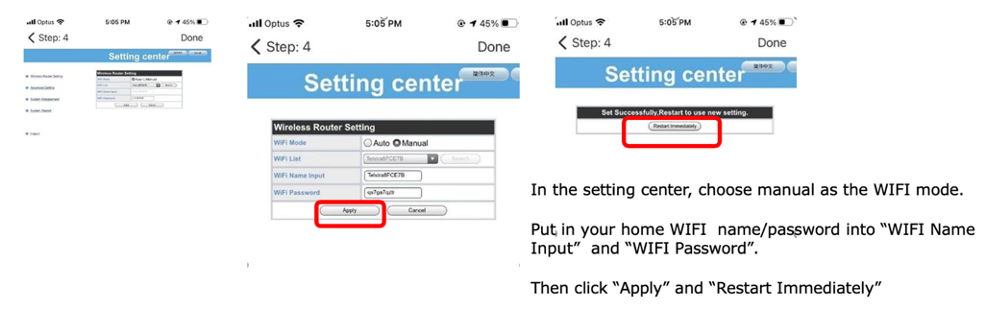

    5. Choose “Manual.”
    6. Enter the Wi-Fi name and password in the respective fields.
    7. Click “Apply” and then “Restart Immediately.”
    8. Configuration is complete when the light flashes blue.



Important Links and Contact Information



Visual Walkthrough:

For those who prefer a visual guide, we have created step-by-step video tutorials available on YouTube. Please select the appropriate link based on your device model:

Other Useful Links

Contact Growatt Australia

For additional support, you can contact our dedicated after-sales team:
